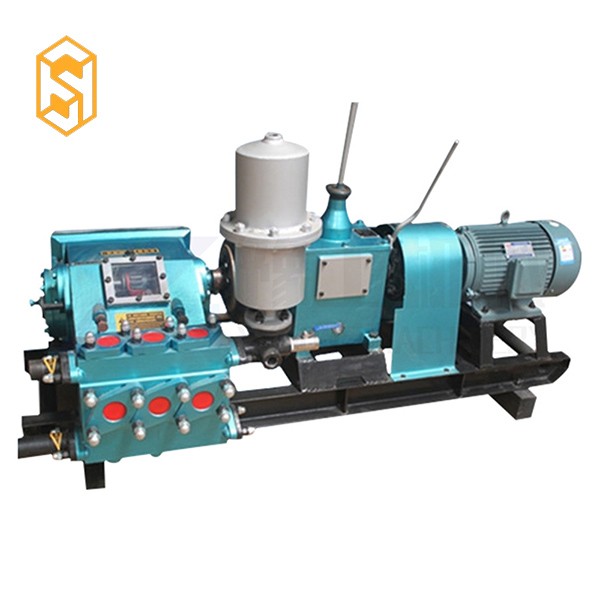

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling Triplex

Quick Detail:

1. Mud pump diameter cylinder liner 80mm and 65mm.
2. This mud pump needs small driving power. It has large output volume and high pressure.
3. This mud pump is a main device in geological survey.

Characteristics :

1. It has the four-block flow required to meet the requirements of large and small borehole drilling rigs. The flow adjustment range is large and the parameter selection is reasonable. It can meet the needs of different calibers, different hole depths, and different geological core drilling.
2. Dust-proof seals are provided on the drawbars to prevent the mud at the hydraulic end from entering the power end and the power end lube oil filter. After many production tests have proved that the seal is reliable and the performance is good. Causes the gear to extend its service life.
3. Intake and drain valves use steel balls. Noise reduction rubber pads are provided on the valve cover to reduce impact noise.
4. The pressure gauge uses seismic pressure gauges and has a long life.
5. Compact structure and beautiful appearance.
6. Detachable, easy to repair and relocate.

Service :

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
